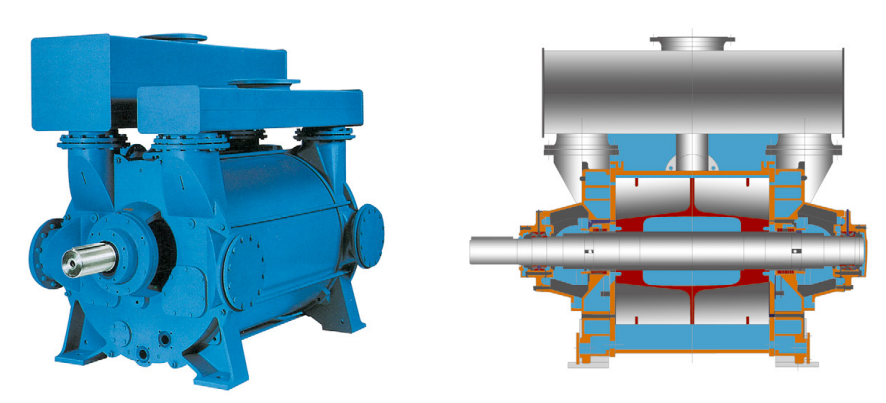

2BE3 series water ring vacuum pumps and compressors


undefined
+
  • undefined
The 2BE3 series water ring vacuum pumps and compressors are products developed by our company based on advanced technologies from imported products. These products are not only highly efficient and energy-saving, but also very suitable for long-term, continuous operation. Under rough vacuum conditions, the operating conditions of water ring pumps are often extremely harsh.

Classification:

Keywords:

Zhuocheng Pump

zhuocheng

Zhuocheng Pump

Product details:

Applications and Features:

The 2BE3 series water ring vacuum pumps and compressors are products developed by our company based on advanced technologies from imported products. These products are not only highly efficient and energy-saving, but also very suitable for long-term, continuous operation. Under rough vacuum conditions, the operating conditions of water ring pumps are often extremely harsh. The 2BE3 series products are designed to be capable of pumping. The 2BE3 can be used with a variety of drive devices, such as belt drives, gearboxes, synchronous motors, and variable frequency speed regulators. In addition, to save space, a series operation driven by a single motor can be adopted, and up to four pumps can be connected in series simultaneously. When equipped with an intermediate partition, the left and right parts of the 2BE3 can operate at different vacuum degrees. As long as the intake pressure difference between these two parts is less than 80 KPa, a single 2BE3 vacuum pump can be used as two independent vacuum pumps, which further improves the operational flexibility of the 2BE3 vacuum pump.
The main structural features of the 2BE3 series water ring vacuum pumps and compressors produced by our company are as follows:

■ Large inspection ports are provided on both sides of the pump cover, allowing for inspection of clearances, corrosion, and fouling.

■ The 2BE3 vacuum pump is pre-equipped with top and side suction and exhaust flanges of the same diameter during manufacturing, making on-site installation more flexible and convenient.

■ All bearings are original imported bearings, ensuring precise positioning of the 2BE3 vacuum pump impeller and high stability during operation.

■ The impeller material is all made of ductile iron casting or steel plate/stainless steel plate welding, fully ensuring the stability of the 2BE3 vacuum pump impeller under various harsh working conditions, and greatly improving the service life of the 2BE3 vacuum pump.

■ The pump body is all made of steel plate or stainless steel plate, improving the service life of the 2BE3 vacuum pump.

■ The shaft sleeve, as the most easily damaged part of the 2BE3 vacuum pump, is made of stainless steel in our factory, increasing its lifespan by 5 times compared to ordinary materials.

■ The pulley (belt drive) adopts a calibrated high-precision tapered bushing pulley, which is reliable in operation, has a long belt life, and is easy to disassemble.

■ The unique top-mounted gas-liquid separator saves space and effectively reduces noise.

■ All castings are made using resin sand casting, resulting in a good surface quality. No polishing is needed on the casting surface, ensuring optimal heat dissipation for the 2BE3 vacuum pump.

■ Mechanical seals (optional) are all imported parts, fully ensuring that the 2BE3 series vacuum pumps operate without leakage during long-term operation.



2BE3 Series Water Ring Vacuum Pump Performance Parameters:

Model



Speed (Drive Type) r/min



Maximum
Shaft Power
KW



Motor
Power
KW



Maximum Pumping Rate

Ultimate Vacuum (Absolute Pressure) KW



Pump Head Weight kg (including top separator)



m3/h m3/min







2BE3-400







340(Belt/Gearbox) 82 110 4850 80.8







160













3275







390(Belt/Gearbox) 95 110 5650 94.2
440(Belt/Gearbox) 115 132 6250 104.2
490(Belt/Gearbox) 134 160 6900 115.0
530(Belt/Gearbox) 148 185 7470 124.5
570(Belt/Gearbox) 167 200 8000 133.3
610(Belt/Gearbox) 189 220 8600 143.3







2BE3-420







340(Belt/Gearbox) 108 132 6650 110.8







160













3720







390(Belt/Gearbox) 132 160 7650 127.5
440(Belt/Gearbox) 157 185 8550 142.5
190(Belt/Gearbox) 180 200 9400 156.6
530(Belt/Gearbox) 204 220 10150 169.2
570(Belt/Gearbox) 229 250 10700 178.3
610(Belt/Gearbox) 260 315 11600 193.3





2BE3-500







260(Gearbox) 142 160 8700 145.0





160











6110







300(Gearbox) 171 200 10150 169.2
340(Gearbox) 203 250 11400 190.0
380(Gearbox) 238 280 12700 211.7
420(Gearbox) 277 315 13800 230.0
470(Gearbox) 338 400 15500 258.3





2BE3-520







260(Gearbox) 172 200 10700 178.3





160











6740







300(Gearbox) 210 250 12300 205.0
340(Gearbox) 245 280 14000 233.3
380(Gearbox) 288 315 15400 256.7
420(Gearbox) 337 400 16800 280.0
470(Gearbox) 412 500 18700 311.7





2BE3-600







230(Gearbox) 205 250 12700 211.7





160











9100







260(Gearbox) 243 280 14400 240.0
290(Gearbox) 285 315 16000 266.7
320(Gearbox) 322 355 17500 291.7
350(Gearbox) 365 450 19000 316.7
400(Gearbox) 465 560 21600 360.0





2BE3-620







230(Gearbox) 250 280 15600 260.0





160











10700







260(Gearbox) 300 355 17700 295.0
290(Gearbox) 340 400 19500 325.0
320(Gearbox) 390 450 21300 355.0
350(Gearbox) 450 500 23200 386.7
400(Gearbox) 570 630 26200 436.7





2BE3-670







210(Gearbox) 280 315 18300 305







160













12700







240(Gearbox) 350 400 20400 340
270(Gearbox) 415 450 23160 386
300(Gearbox) 465 560 25500 425
320(Gearbox) 523 630 27000 450
330(Gearbox) 545 630 27720 462
370(Gearbox) 670 800 30960 516





2BE3-720





190(Gearbox) 345 400 21900 365





160









15700





210(Gearbox) 395 450 24300 405
240(Gearbox) 475 560 27480 458
270(Gearbox) 550 630 30540 509
300(Gearbox) 642 710 33780 563
340(Gearbox) 795 900 38100 635

  Note: The selected motor power above can work under most working conditions. If the exhaust pressure is high (gauge pressure 0.02-0.05 MPa), the motor power should be increased accordingly; if the shaft power corresponding to the actual 2BEC vacuum pump working pressure is smaller, a motor power close to the shaft power can also be selected, which can be more energy-saving.
