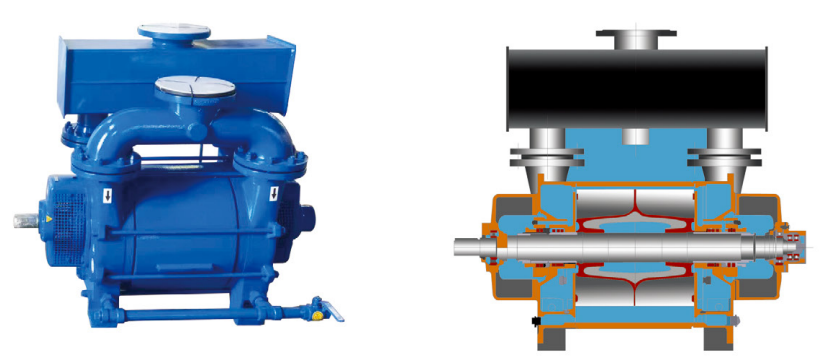

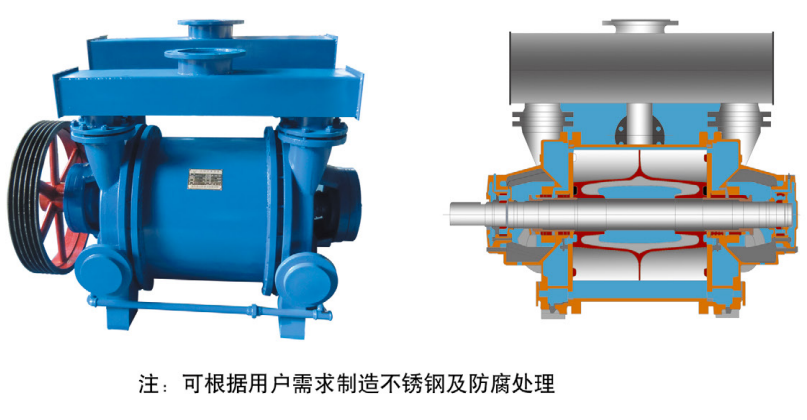

2BE1 series water ring vacuum pumps and compressors

Applications and Features:
The 2BE1 series water ring vacuum pumps and compressors are high-efficiency, energy-saving products developed by our factory, incorporating advanced technologies from imported products. This series of pumps features a single-stage, single-acting structure, characterized by its simple structure, easy maintenance, reliable operation, and high energy efficiency. Compared to the widely used SK, 2SK, and SZ series water ring vacuum pumps in China, it boasts significant advantages such as higher vacuum, lower power consumption, and reliable operation, making it an ideal replacement for SK, 2SK, and SZ series water ring vacuum pumps.
The main structural features of the 2BE1 series water ring vacuum pumps and compressors produced by our company are as follows:

◆ All bearings are original imported bearings, ensuring precise positioning of the 2BE1 vacuum pump impeller and high stability during operation.

◆ The impeller material is entirely made of ductile iron casting or steel plate welding, fully ensuring the stability of the vacuum pump impeller under various harsh working conditions and significantly improving the service life of the 2BE1 vacuum pump.
◆ The pump body is entirely made of steel plate, improving the service life of the 2BE1 vacuum system. The pump bushing, as the most easily damaged part of the 2BE1 vacuum pump, is made of high-chromium stainless steel, increasing its lifespan by five times compared to ordinary materials.

◆ The pulley (belt drive) adopts a standard high-precision tapered bushing pulley, ensuring reliable operation, convenient disassembly, and a long belt service life.

◆ The coupling (direct drive) adopts a standard high-strength elastic coupling. The elastic element is made of polyurethane material, ensuring stable and reliable operation and a long service life.

◆ The unique top-mounted gas-water separator saves space and effectively reduces noise. All castings are made using resin sand casting, resulting in a good surface quality.

◆ The casting surface does not require polishing, ensuring optimal heat dissipation for the 2BE1 vacuum pump.

◆ Mechanical seals (optional) are all imported parts, fully ensuring that the 2BE1 series vacuum pump operates without leakage during long-term operation.

◆ The inner wall profile of the pump body adopts a near-elliptical profile to ensure optimal pumping efficiency.

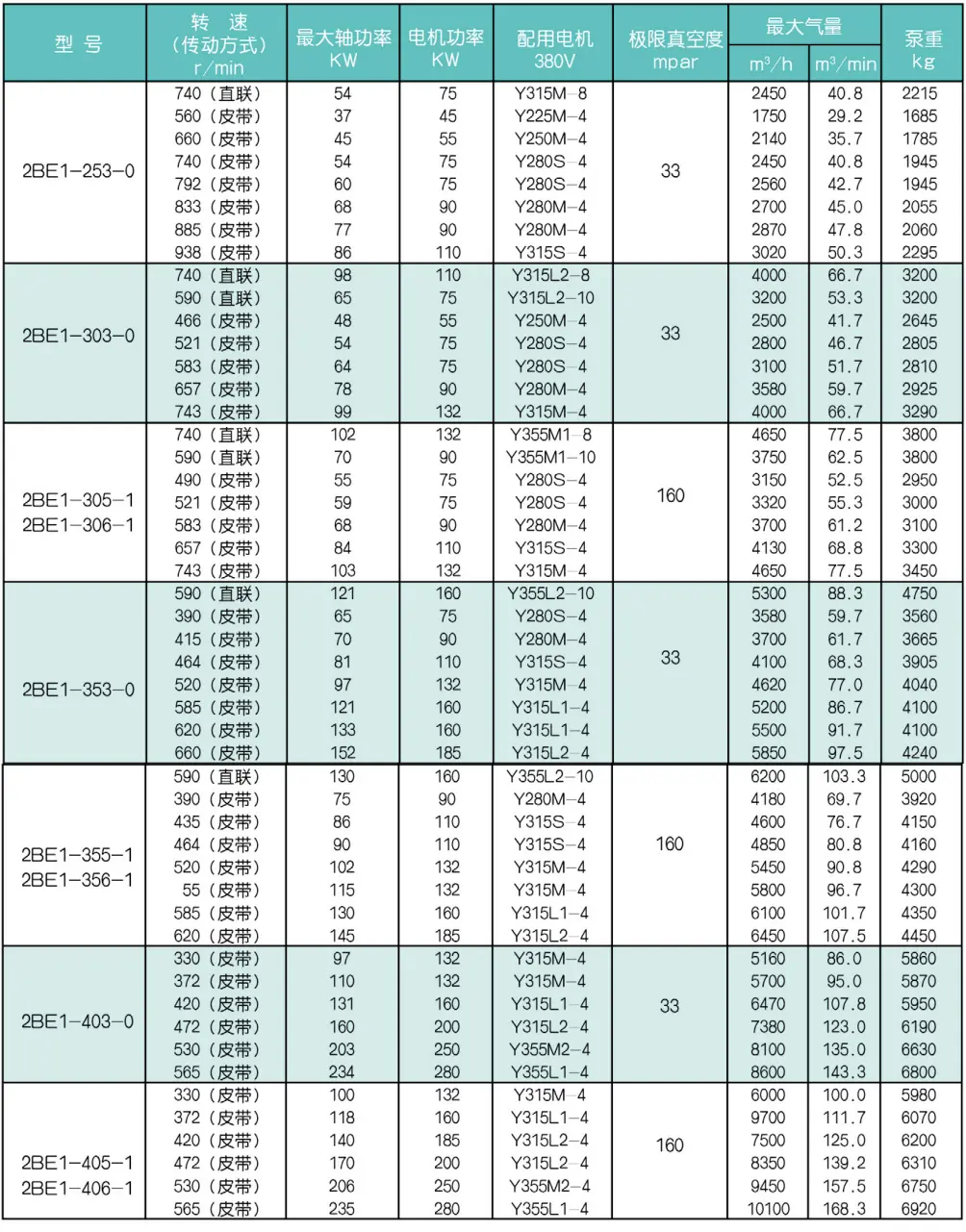

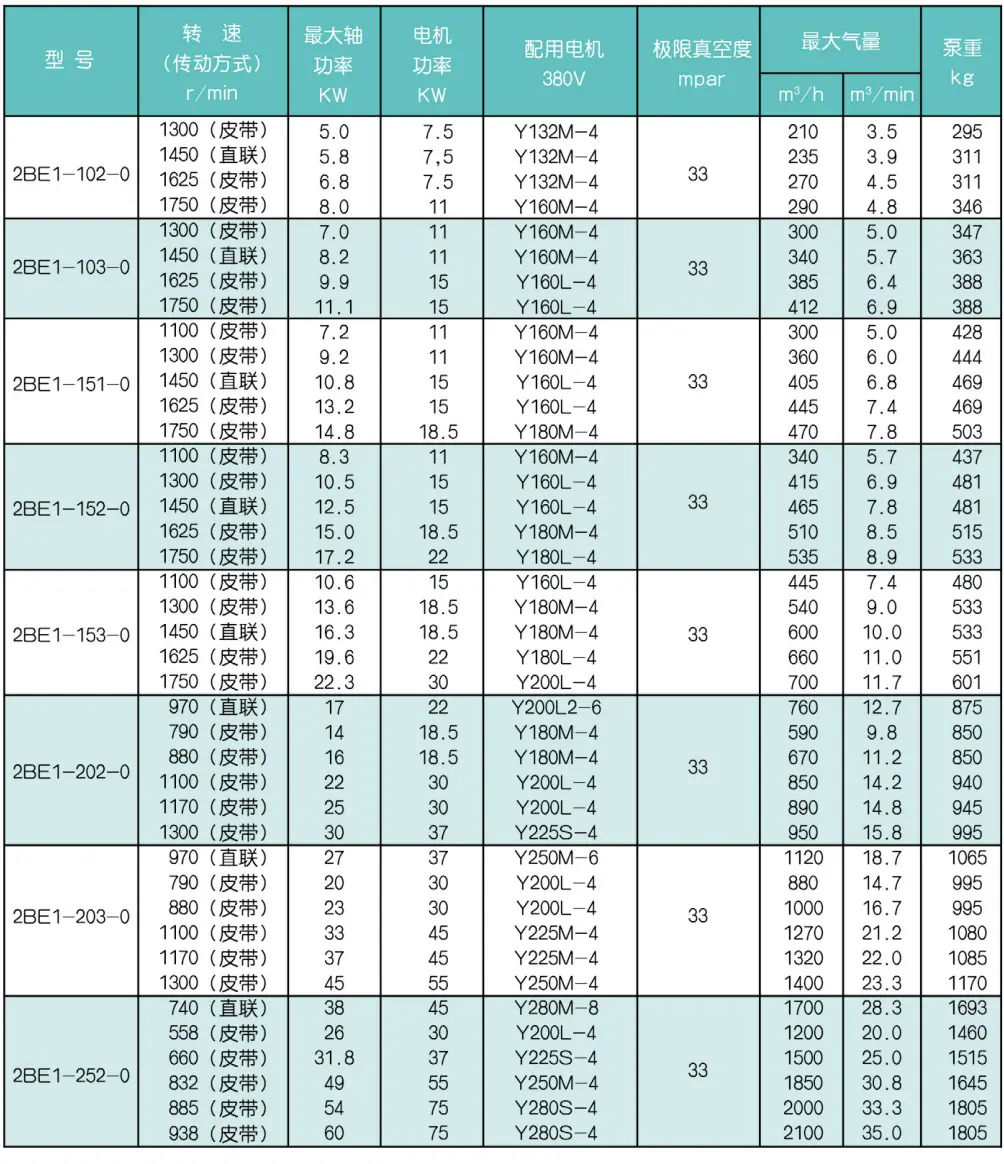

2BE1 Series Water Ring Vacuum Pump Performance Parameters Table:
